Generator funkcija 1µ-30MHz,brojač, UTG932E, Uni-trend

Opis

UNI-T UTG932E Function Singal Generator 1µHz-30MHz Dual Channel Frequency Sine Wave Arbitrary Waveform Generator 200MS / s Sample rate

The UTG900 series function arbitrary waveform generator uses direct digital synthesis technology to produce accurate and stable waveform output, with a resolution as low as 1µHz.

It is an economical, high-performance, and versatile function arbitrary waveform generator. It can generate accurate, stable, pure, low-distortion output signals, convenient operation,

superior technical indicators and humanized graphic display. It is a multi-purpose device that meets the needs of learning and testing and improves work efficiency.

Features

? Output waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary

? Output frequency range: 1µHz-30MHz/60MHz

? High-accuracy, broad-band 6 bit frequency counter, range: 100mHz~100MHz

? Two equivalent-performance channels

? 4.3 inches TFT LCD

Note:

Do not expose the product to direct sunlight for a long time.

Do not place it in mist, liquid or solvent.
Specifications
ModelUTG932EUTG962E
Channel2
Max frequency30MHz60MHz
Sampling rate200MS/s
Vertical resolution14 bits
WaveformsSine, square, pulse, ramp, noise, DC, arbitrary
Sweep modesLogarithmic, linear
Frequency Characteristics
Sine1µHz~30MHz1µHz~60MHz
Square1µHz~15MHz1µHz~20MHz
Ramp1µHz~400kHz1µHz~400kHz
Pulse1µHz~15MHz1µHz~20MHz
Arbitrary1µHz~10MHz1µHz~10MHz
Resolution1µHz
AccuracyWithin 90 days ± 50ppm
Within 1 year ± 100ppm
18?~28?
Output Characteristics
Impedance50?/High Z
Amplitude range1mVpp~10Vpp (50?); 2mVpp~20Vpp (high Z)
DC o?set range (AC+DC)±5V (50?); ±10V (high Z)
Amplitude resolution1mV
General Characterisitics
Power100~240VAC, 50Hz/60Hz
Display4.3”TFT LCD (480×272)
Product colorWhite and grey
Product net weight0.33kg

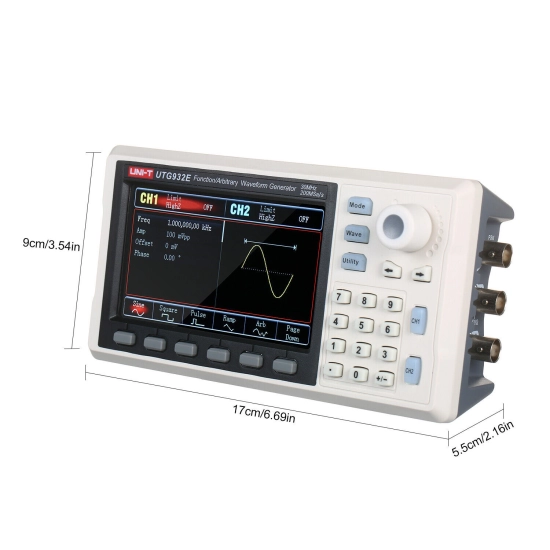

Product size172mm x 90mm x 68mm
Standard accessoriesUSB interface cable, power cord, BNC cable with alligator clips
Standard individual packingCarton box

Packaging List:
1 * Signal Generator

2 * Alligator Clip

1 * Plug(Supply US/ EU Style)

1 * Switching Adapter

1 * Power Cord

1 * Coaxial Cable
