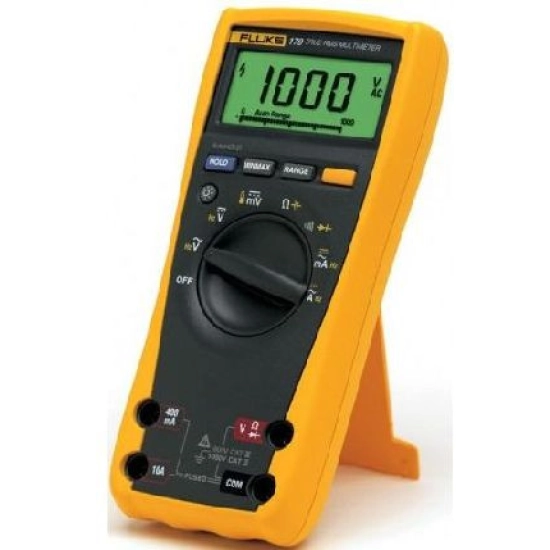

Instrument Fluke 179/EDA2/EUR KIT

Opis

komplet FLUKE 179/EDA2/EUR, koji se sastoji od :
instrumenta, torbice, magnetnog držača, dva kompleta pipalica i sonde

-True RMS digitalni multimetar
-Zaslon sa 6000 znamenkama i analognom bargraf skalom
-Automatsko i manualno podešavanje mjernog opsega
-MIN, MAX, HOLD i AUTO HOLD funkcija
-Osnovna točnost na VDC području 0,09%
-Mjerenje napona 1000V AC/DC, Struje 10A AC/DC
-Mjerenje otpora 40M?, frekvencije 100kHz i kapaciteta 10mF
-Ispitivanje dioda, neprekinutosti sa zvučnim signalima
-Mjerenje temperature -40°C do +400°C
-Pozadinsko osvjetljenje zaslonas
-Automatsko isključenje
-Robusno zaštitno kučište otporno na padove i udarce
-KOMPLET: Multimetar, TL224 mjerne vezice - banana
konektor na obje strane, TL910 mjerne vezice 1mm vrh
za laku dostupnost mjernih točaka, AC280 krokodil
hvataljke, otvor čeljusti 6.3mm, 80BK temperaturna
sonda - termopar K-tip, -40°….+260°C, T-PAK komplet
za vješanje instrumenta, C35 torbica za instrument i
mjerni pribor, upute na hrvatskom.

EN61010-1 CAT III 1000V / CAT IV 600V
Measures twice as fast as other multimeters
Calibrated





tehnički podaci:

-
Voltage DC
Accuracy*: ± (0.09%+2) Max.

Resolution: 0.1
mV Maximum 1000 V

Voltage AC
Accuracy*: ± (1.0%+3)
Max. Resolution: 0.1 mV
Maximum: 1000 V

Current DC
Accuracy*: ± (1.0%+3)
Max. Resolution: 0.01 ma

Maximum: 10 A

Current AC
Accuracy*: ± (1.5%+3)
Max. Resolution: 0.01 mA
Maximum: 10 A

Resistance
Accuracy*: ± (0.9%+1)
Max. Resolution: 0.1 ?
Maximum: 50 M?

Capacitance
Accuracy* ± (1.2%+2)
Max. Resolution: 1 nF
Maximum: 10,000 °F

Frequency
Accuracy*: ± (0.1%+1)
Max. Resolution: 0.01 Hz
Maximum: 100 kHz

Temperature
Accuracy* ± (1.0%+10)
Max. Resolution: 0.1°C
Range: -40°C/400°C

*Note: Accuracies are best accuracies for each function

Environmental Specifications

Operating Temperature: -10°C to +50°C
Storage Temperature: -30°C to +60°C
Humidity (Without Condensation):
0% - 90% (0°C - 35°C)
0% - 70% (35°C -50°C)

Safety Specifications

Overvoltage category: EN 61010-1 to 1000 V CAT III. EN 61010-1 to 600 V CAT IV.
Agency Approvals: UL, CSA, TUV listed and VDE Pending

Mechanical & General Specifications

Size: 43 x 90 x 185 mm
Weight: 420 g

Battery Life Alkaline: ~200 hours typical, without backlight
