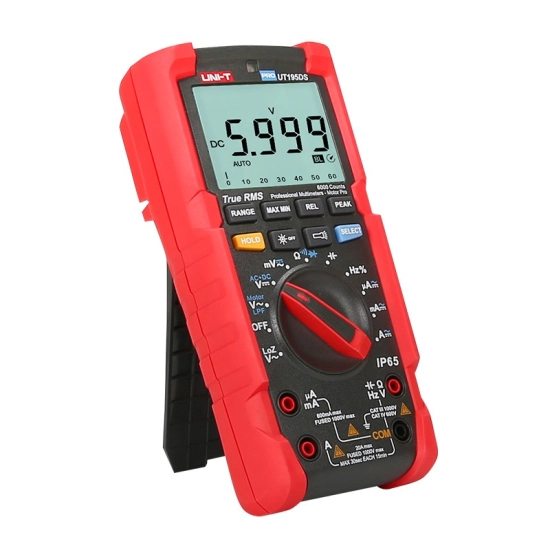

Instrument industrijski UT-195 DS, profesionalna izvedba, Uni-trend

Osnovne značajke
Main Features:
IP65 Water Proof / GS Certified 3rd edition CE
2m drop proof
CAT III 1000V/IV 600V
Flash Light
Low Z input (3k Ohm) for ghost voltage measurement
Motor Phrase Sequence Measurement by 2 test lead
AC+DC / Low Pass Filter/ Peak Hold (250 us transient)
Dual...
186,00€
Dostupno manje od 5 kom
12 x 15,50€24 x 8,29€
Jamstvo: 2 godine
Dosegli ste maksimum raspoloživosti - 3

Jednokratno plaćanje:
  • Internet bankarstvo (virman)
  • Pouzećem - plaćanje gotovinom dostavljaču kod isporuke paketa
  • Maestro, MasterCard, Visa, Visa Premium
Obročno plaćanje:
  • MasterCard ZABA do 24 rate
  • Visa Premium do 10 rata
Instrument industrijski UT-195 DS, profesionalna izvedba, Uni-trend
186,00€
Opis
Main Features:
IP65 Water Proof / GS Certified 3rd edition CE
2m drop proof
CAT III 1000V/IV 600V
Flash Light
Low Z input (3k Ohm) for ghost voltage measurement
Motor Phrase Sequence Measurement by 2 test lead
AC+DC / Low Pass Filter/ Peak Hold (250 us transient)
Dual Display
ACV 750V bandwidth 5kHz
20A current measurement (30 seconds)
True RMS/ Bar graph Display
Auto backlight on and off
Measurement
DCV/ACV 600mV6V/60V/600V/1000V (ACV 750V for 5kHz)
ACV LoZ600V / LoZ 300k Ohm
ACA/DCAuA/mA/10A and 20A for 30 seconds
R / Cap / Fre/ Duty / Diode/ Con / MPS
HOLD/ MAX/MIN / RANGE / SELECT/ REL/ APO

SpecificationsRange Best Accuracy
Model UT195DS
DC voltage600mV ~ 1000V±(0.5%+3)
AC+DC 6.000V ~ 600V ±(1.5%+4)
AC voltage 600mV ~ 750V±(0.7%+3)
LoZ ACV 600.0V ±(2.0%+3)
DC current (A)600.0µA ~ 20A±(0.8%+3)
AC current (A)600.0µA ~ 20A±(1.0%+3)
Resistance (?)600.0? ~ 60.00M?±(0.8%+2)
Capacitance 6.000nF ~ 60.00mF±(3%+5)
Frequency60.00Hz ~ 40.00MHz±(0.1%+4)
Duty ratio0.1% ~ 99.9%±(2.0%+5)
Peak hold 250µs [UT195...png]

Features
Display count 6000
Display interface (HTN) Dual display
Measurement of digital conversion rate times/s5
Measurement of analogue bar conversion rate times/s20
Analogue bar 31 section?
True RMS ?
AC voltage frequency response 45 ~5kHz
AC current frequency response 45 ~5kHz
Low pass filter test? (1kHz 3dB attenuation)
Diode/Continuity test 3V
Working temperature0 °C ~40 °C
Auto/Manual range?
Auto power off?
Continuity buzzer?
Low battery indication?
Data hold ?
MAX/MIN ?
Function selection?
Flashlight ?
Auto backlight?
2m drop proof?
Protection ratingIP65

General Characteristics
Power supply9V 6F22 carbon-zinc or 6LR61 alkaline battery
LCD size 66mm × 51mm
Device colorRed and grey
Device weight473g
Device size195mm × 95mm × 58mm
Standard accessoriesTesting probes, battery, carrying bag
Standard individual packingGift box, user manual
