Instrument UT-612, RLC metar, ESR, Uni-trend

Opis

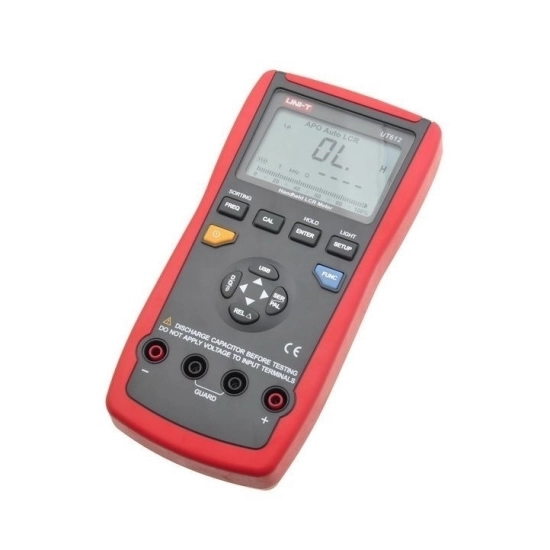

UNI-T UT612 LCR Meter Details
The UNI-T UT612 is an LCR meter that is simple to use, and can measure inductance, capacitance and resistance
with a high degree of accuracy across different ranges.
This means measurement precision is maintained at high and low ends of the monitoring spectrum.
In order to achieve total ease of use, the LCR meter is auto-ranging, minimizing the need for user configuration.
This LCR meter a good choice if you need to record readings for future reference.
It has a quick-touch data hold function that stabilizes fluctuating readings on the screen for a few seconds,
giving you the chance to write down measurements when appropriate.
What’s more, the LCR meter can be used with circuits in both series and parallel.
This makes it compatible with a wide range of electric systems.
The UNI-T UT612 LCR meter also features an LCD, backlit 2.8 inch screen,
which has the capability to display two measurements simultaneously.
UNI-T UT612 LCR Meter Key Features
Auto-ranging
ESR test
Test multiple ranges across inductance, resistance and capacitance
LCD display
Data hold function allows you to save test data
Powered by either 9V batteries or USB power
Backlight for use in dark areas
Series and parallel measurement models

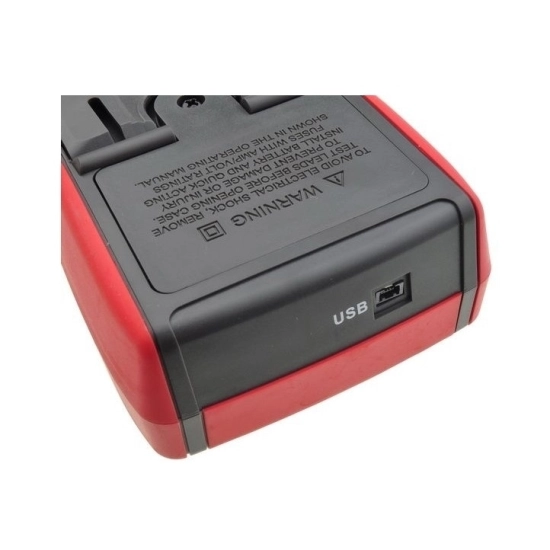

Connects to PC via USB

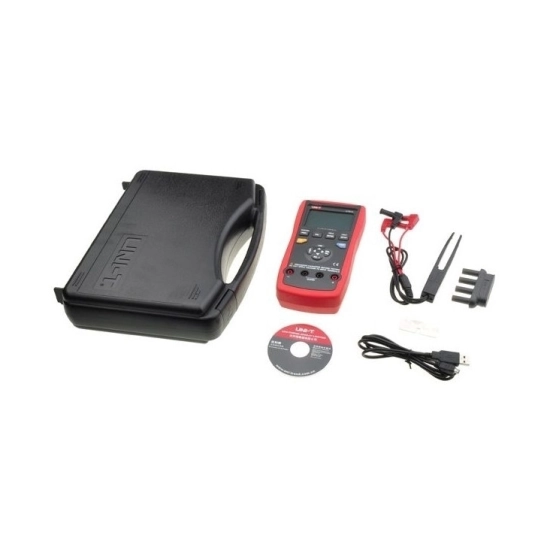

Supplied In Uni-T UT612 LCR Meter Package:
UNI-T UT612 LCR Meter
SMD test clamp
USB interface cable (80cm)
PC software CD ROM
Multi-purpose socket
Short circuit plate
Battery
tehnički podaci:
-Basic Function Range Accuracy
L (H) 20uH/200uH/20mH/200mH/
2000mH/20H/200H2000H/20KH ±(0.5%+5)
C (F) 200pF/2nF/20nF/200nF/
2000nF/20uF/200uF/2000uF/20mF ±(0.5%+5)
R (?) 20?/200?/2K?/20K?/200K?/
2M?/20M?/200M? ±(0.3%+5)
Frequency 100Hz/120Hz/1KHz/10KHz/100KHz
Voltage 0.6Vrms
Parameters L/C/R/DCR/Q/D/?/ESR
Power: 9V battery(6F22) (not included) or USB power
LCD size: 40 X 63mm
Color: Red + Grey
Weigh: 374g
Size: 96 X 193 X 47mm
